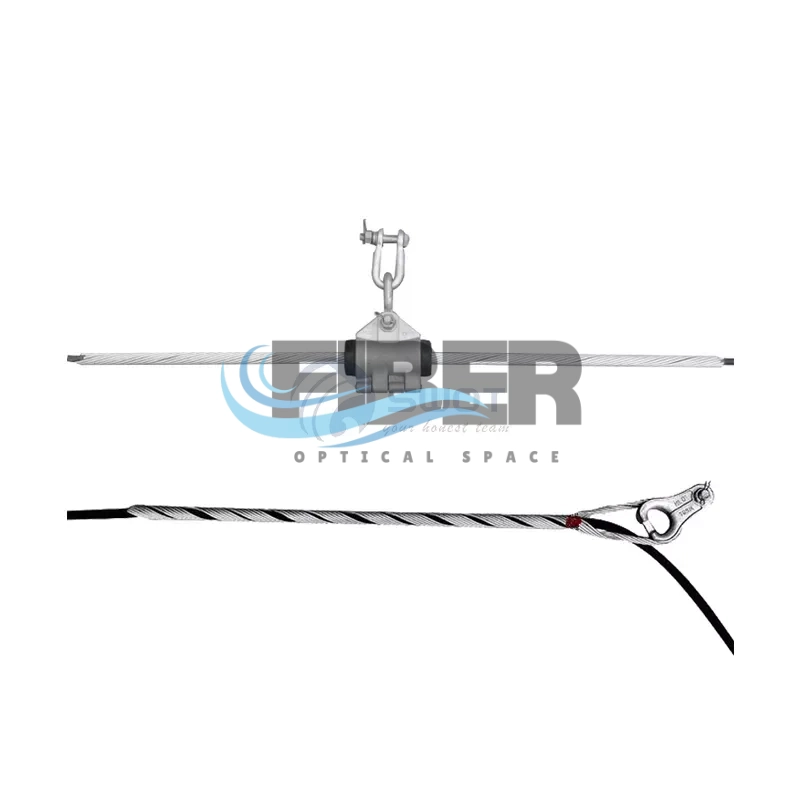

ADSS Suspension Tension Clamp Galvanized Aluminum Clad Wire
Description
Description
Galvanized Twisted Fence Wire for ADSS
- 1.The tension clamp for adss is used to connect terminal support,tension support,splice support and support of angle greater than 25°.
- 2.The configuration includes 1 set of terminal support ,2 sets of tension support,splice support,and whose angle is over 25°.
- 3.Users according to the fiber cable diameter , RTS or span select ion suitab le Tension Clamp.

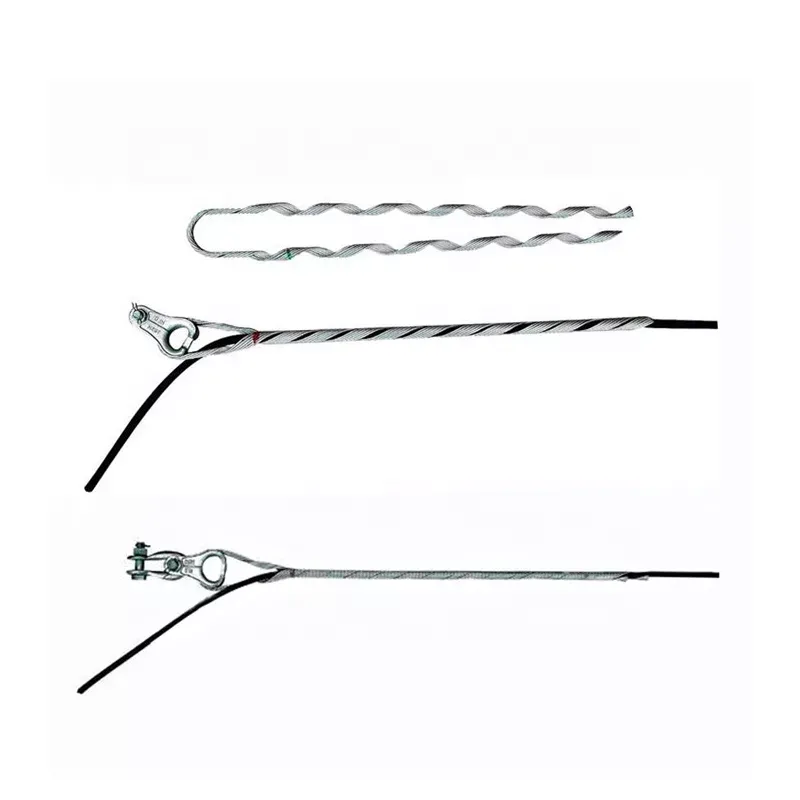

- 4.The Tens ion Clamp for ADSS includes : Inner preformed armor rods, outer tension preformed rods, a thimble clevis, a clevis , two anchor shackles .
Specifications
1.Inner preformed armor rods: Made of Aluminum-clad stee l ,with particulate grit
applied to increase friction . The terminals bend toward outside to keep cable form ab rasion .
2.Outer tension preformed rods: Made of Aluminum-clad stee l , the individual rod assemb led into groups to increase the strength of tension clamp in the condit ion of decreasing the stress imposed on cable.
3. Thinmble: Hot galvanized steel .
There are four types of failure loads : SOk N 、 70 k N 、 l OOk N 、 120 k N.
There are four types of failure loads : SOk N 、 70 k N 、 l OOk N 、 120 k N.
4.Clevis: Ho t galvanized stee l . It is used to conect thimb le clevis and anchor shack le. There are three types : SOKN ,70KN,1
OOKN , 120KN .
OOKN , 120KN .
5.Anchor shack le: Hot galvanized stee l . Connecting support fastening . The type: U-5 is SOKN,U-7 is 70KN , U-10 1OO KN , U-12
120KN.
120KN.
