Fiber Optic Adapter SC APC Duplex

Fiber Type: Singlemode,Multimode
Fiber Count:2 Cores

Applications:

l FTTX Systems

l LAN, WAN and Metro Networks

l Analog/Digital Passive Optical Networks

l CATV Networks

l Other applications in fiber optic systems

Description

Description

  • Fiber Type: Singlemode,Multimode
    Fiber Count:2 Cores

    Applications:

  • l FTTX Systems

    l LAN, WAN and Metro Networks

    l Analog/Digital Passive Optical Networks

    l CATV Networks

    l Other applications in fiber optic systems

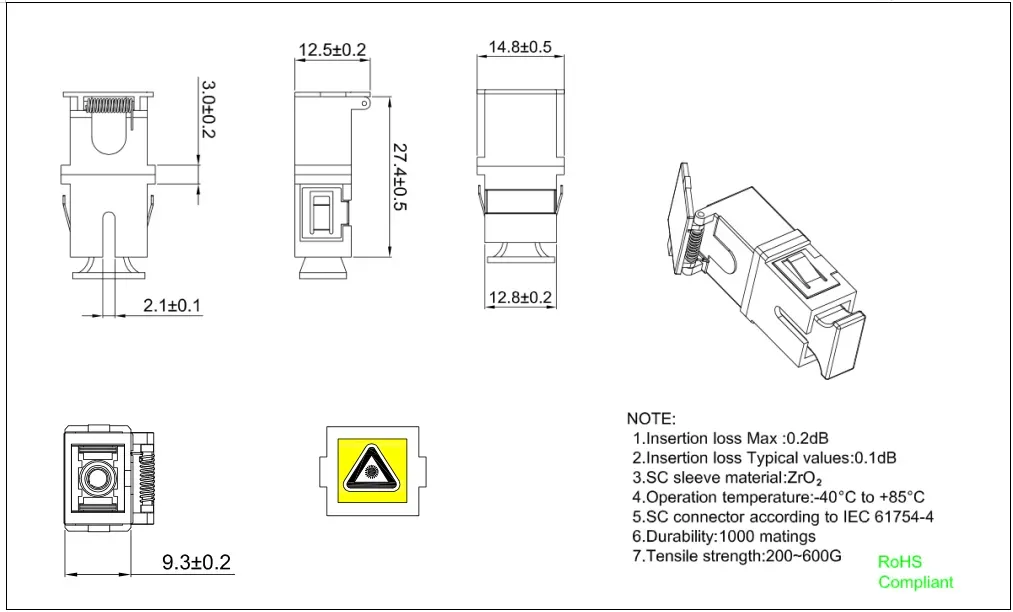

Specifications
Insertion loss (dB) ≤0.2
Repetitiveness (dB) ≤0.1
Interchangeability (dB) ≤0.2
Plug times >500
Tensile strength(g) 200~600
Operating Temperature(℃) -40~+85
Packing



Simplex 2000pcs/carton
Duplex 1000pcs/carton
Weight 8.5kg
Carton Dimension 470x310x210mm
