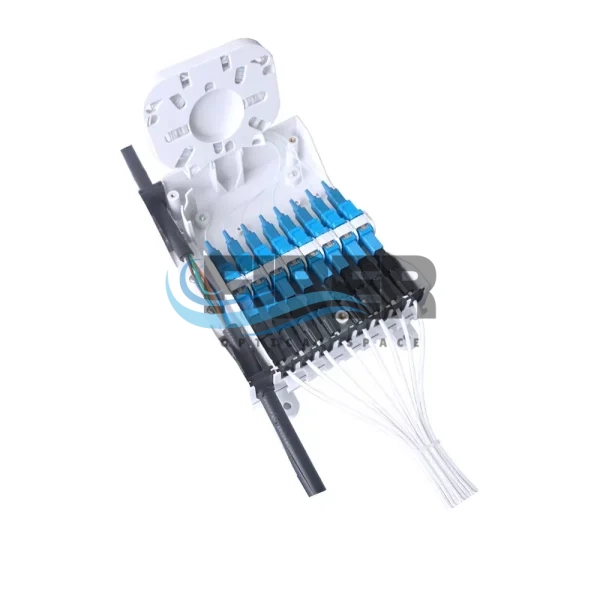

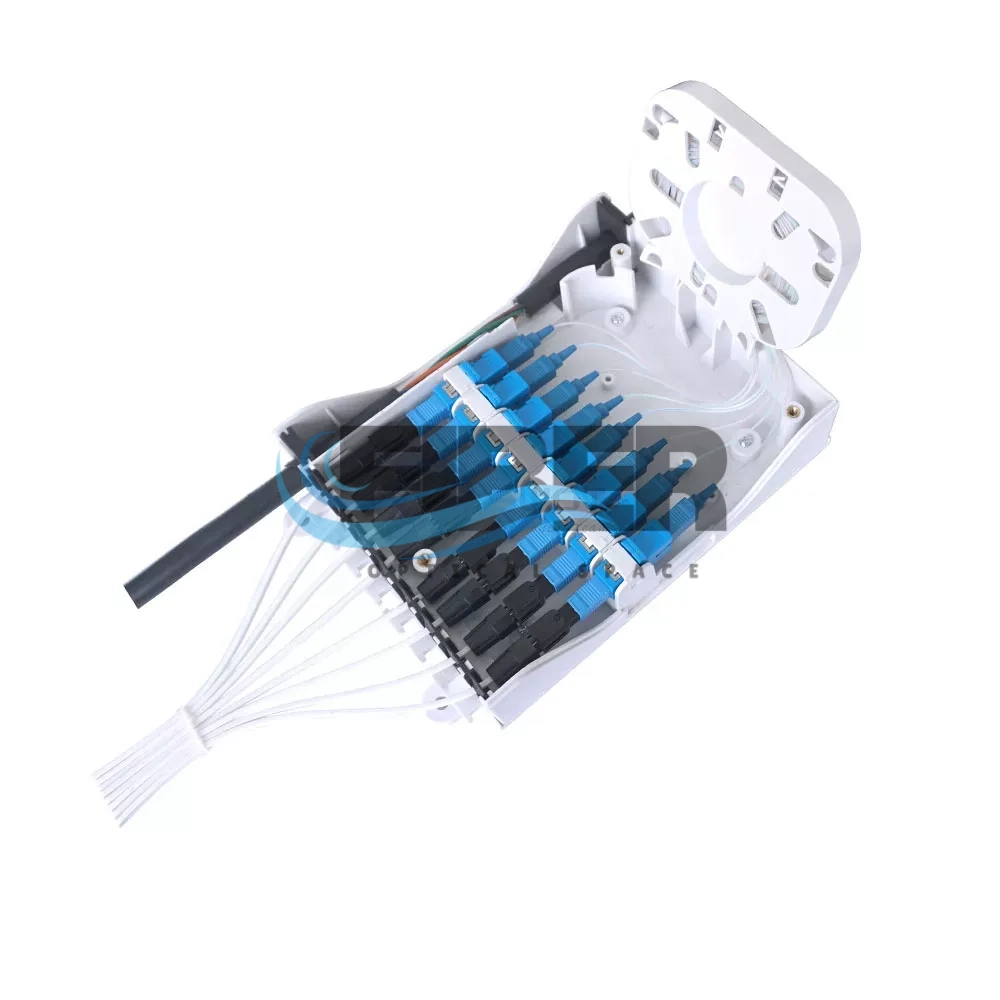

FTT-FDB170108 8 Port FTTH Terminal Box Indoor White
Capacity: 8 port
Connector type: SC simplex, LC duplex
Applications: FTTx wall mount
Description
Description
- Material: >ABS FR<, high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain
- Clamping for feeder cable and drop cable , fiber splicing, fixation, storage, distribution…etc all in one
- Cable, pigtails, patch cords are running through own path without disturbing each other, easy maintenance
-
Cabinet can be installed by the way of wall-mounted, suitable for indoor uses
- Lateral pressure-resistance: 500N
- Shock-resistance: 750N
- Working temperature: -40 ~ +80℃
Specifications
| Model No | FTT-FDB170108 |
| Dimension( L×W×H ) | 192x135x48mm |
| Function | Cable terminal, passive splitter |
| Adaptor type | SC /LC |
| Material | ABS FR |
| Color | White |
| Capacity | 2 inlet port,
8 outlet port, 2*3mm drop cable or indoor cable |
| Max PLC splitter ratio | 1*4,1*8 Mini steel tube/ bare type PLC splitter |
| Max splice capacity(F) | 8 FO |
