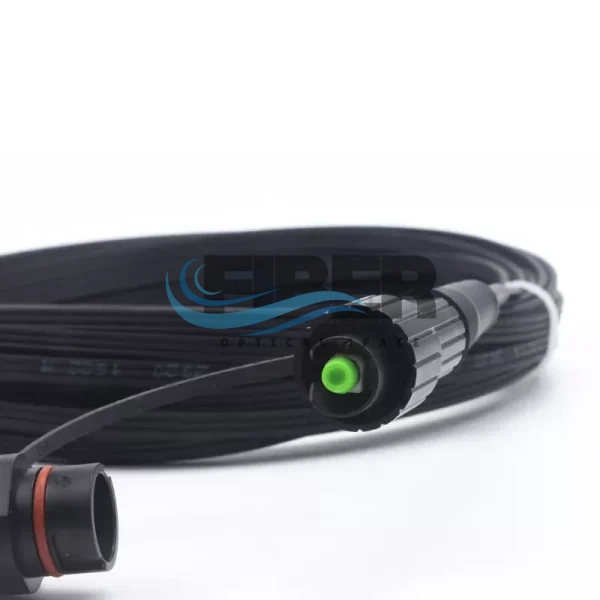

IP68 FTTA Patch Cord Pigtail Mini SC Waterproof connector
Fiber Type: G657A1/G657A2
Fiber Count: 1F
Outer Sheath Material:LSZH,TPU
Applications:
1.Fiber-to-the-Antenna (FTTA)
2.Automation and industrial cabling
3.Surveillance systems
4.Naval and ship building
5.Broadcast
Fiber Count: 1F
Outer Sheath Material:LSZH,TPU
Applications:
1.Fiber-to-the-Antenna (FTTA)
2.Automation and industrial cabling
3.Surveillance systems
4.Naval and ship building
5.Broadcast
Description
Description
- Cost effective solution for in house termination
- Low insertion loss and added loss
- Height of attenuation.
- IP68 water, dust proof and corrosion resistant
- The material in the jumpel cable are all-weather and UV-resistant.
- Mechanical performance: IEC 61754-4 standard.
- RoHS and REACH materials compliant.
Specifications
| Standards | GR-3120, GR-3152, IEC61753-1, IEC 61754-4 |
| Insertion loss | ≤0.5dB |
| Return loss | ≥50dB(UPC),≥60dB(APC) |
| Repeatability | ≤ 0.1 |
| Interchangeability | ≤ 0.2 |
| Durability | ≥ 1000 times |
| Dust Cap Max. Pulling Force | 100N |
| Water Resistance | IP68 |
| Operating temperature | -40℃ to + 85℃ |
| Storage Temperature | -40 to 85°C |
1.FTTH outdoor drop cable (2.0x5.2mm)
 |
NO. | Name | Remark |
| 1 | LSZH | ||
| 2 | FRP/Steel Wire | ||
| 3 | K-FRP | ||
| 4 | Nylon Fiber | SM G657A1/A2 |
2.Small size Fig-8 drop cable (3.0x5.2mm)
 |
NO. | Name | Remark |
| 1 | LSZH | ||
| 2 | FRP/Steel Wire | ||
| 3 | Kevlar | ||
| 4 | Tight Buffer | ||
| 5 | Fiber | SM G657A1 |
3.Flat fiber optic cable, 4.0X7.0mm
 |
NO. | Name | Remark |
| 1 | LSZH | ||
| 2 | FRP/Steel Wire | ||
| 3 | Ripcord | ||
| 4 | Loose Tube | ||
| 5 | Kevlar | ||
| 6 | Tight Buffer | ||
| 7 | Fiber | SM G657A1/A2 |
