Outdoor Fiber Optic cable Figure 8 GYXTC8Y
Fiber Type: Singlemode / Multimode / OM1 / OM2 / OM3
Fiber Count: 2-24F
Applications: Aerial
Description
Description
- Excellent tensile strength for such small diameter.
- Low dispersion and attenuation
- Proper design, precise control for fiber excess length render the cable excellent mechanical and environmental properties.
- Small cable diameter, light cable weight, easily to install.
- a steel wire messenger
Specifications
|
No. of cable
|
2-12
|
||
|
Fiber Model
|
G.652D
|
||
|
Loose Tube
|
Material
|
PBT
|
|
|
Diameter（±0.06）mm
|
1.6
|
||
|
Thickness（±0.03）mm
|
0.32
|
||
|
The Max.Core NO./Tube
|
12
|
||
|
Outer Sheath
|
Material
|
MDPE
|
|
|
Thickness（±0.2）mm
|
1.0
|
||
|
Web
|
Material
|
MDPE
|
|
|
Size（±0.2）mm
|
0.5*1.5
|
||
|
Messenger Wire
|
Material
|
Steel wire
|
|
|
Diameter（±0.05）mm
|
1.0
|
||
|

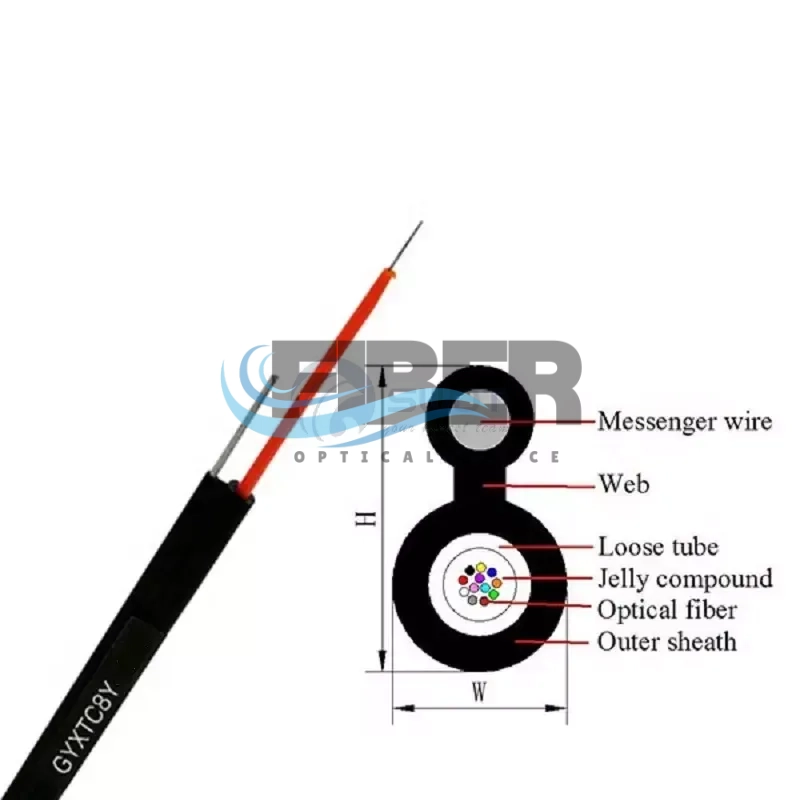

Cable Diameter（±0.3）mm(W×H)
|
3.8*6.8
|
||
|
Cable Weight（±3）kg/km
|
22
|
||
|
Min. bending radius
|
Without Tension
|
10×Cable-φ
|
|
|
Under Maximum Tension
|
20×Cable-φ
|
||
|
Temperature range
（℃） |
Installation
|
-20~+60
|
|
|
Transport&Storage
|
-40~+70
|
||
|
Operation
|
-40~+70
|
||
Packing
| Fiber | Length/KM | packing size/cm |
| 2-30 | 2 | 100×100×70 |
| 3 | 110×110×70 | |
| 4 | 125×125×90 | |
| 32-60 | 2 | 100×100×70 |
| 3 | 110×110×70 | |
| 4 | 125×125×90 | |
| 60-72 | 2 | 100×100×70 |
| 3 | 110×110×70 | |
| 4 | 125×125×90 | |
| Packing | Wooden drum | |
